A5P2C Nidec 5 hp 1800 RPM 215 U Frame (Rigid Base) 460V TEFC 3-Phase Automotive Duty Motor
A5P2C Nidec 5 hp 1800 RPM 215 U Frame (Rigid Base) 460V TEFC 3-Phase Automotive Duty Motor
A5P2C Nidec 5 hp 1800 RPM 215 U Frame (Rigid Base) 460V TEFC 3-Phase Automotive Duty Motor
A5P2C Nidec 5 hp 1800 RPM 215 U Frame (Rigid Base) 460V TEFC 3-Phase Automotive Duty Motor

Nidec

A5P2C Nidec 5 hp 1800 RPM 215 U Frame (Rigid Base) 460V TEFC 3-Phase Automotive Duty Motor

(No reviews) Write a Review
$2,096.45
$1,872.32
SKU A5P2C
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 5 HP
RPM 1800
Phase Three Phase
Enclosure TEFC
Hertz 60 Hz
Amperage 6.4 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 5 hp 1800 RPM, 6.4 amps 460 Volts 60 Hz Three Phase Motor

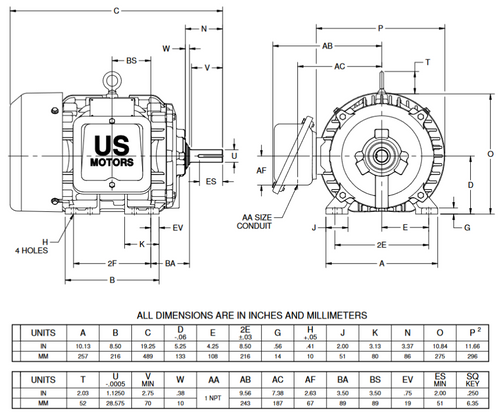

  • NEMA 215 Cast Iron U Frame Keyed Shaft 1 1/8" Diameter x 3"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

Designed for use in automotive and process industries requiring a U frame motor, Corrosion resistant, Division 1 hazardous location motor for class 1 group D.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. GE97

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 5 HP
RPM 1800
Phase Three Phase
Enclosure TEFC
Hertz 60 Hz
Amperage 6.4 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
