86652 Aftermarket Nutone Fan Motor

86652 Aftermarket Nutone Fan Motor

This aftermarket replacement motor is designed for Nutone models 86652 and 86652000 exhaust fans. It provides a direct OEM equivalent solution for restoring fan performance in residential or commercial ventilation systems.

Key Specifications

• RPM: 1285
• Voltage: 120 volts
• Amperage: 0.7 amps
• Frame / Diameter: 3.3 inches
• Shaft Dimensions: 1/4" diameter x 1" length
• Rotation: Counterclockwise (CCW) shaft end

Product Features & Fitment

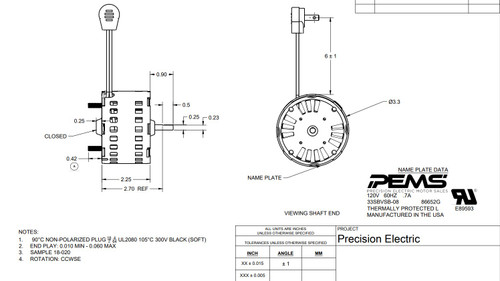

The motor features a compact 2-1/4" body length (excluding shaft) and includes a 2-prong plug for straightforward electrical connection. It mounts using two studs located opposite the shaft end, ensuring compatibility with existing Nutone exhaust fan housings. Manufactured in the USA, this motor serves as a reliable replacement for Nutone part numbers 683, 86652000, 86652-000, JA2B099, and JA2B099N.

Cross Reference

• Nutone 683 Exhaust Fan, 86652000, 86652-000, JA2B099, JA2B099N

Warranty

1 Year Manufacturer Warranty
