3037 Nidec | Amana Fan Motor (K033CDR0934AC1B) 1/15 hp 1475/1375 RPM 265V

3037 Nidec | Amana Fan Motor (K033CDR0934AC1B) 1/15 hp 1475/1375 RPM 265V

This 1/15 horsepower fan motor is designed as a direct replacement for Amana models K33HXCDR-934, 10292803, and K033CDR0934AC1B. It is ideal for HVAC applications requiring reliable two-speed operation.

Key Specifications

• Horsepower: 1/15 hp
• RPM: 1475/1375 (2-Speed)
• Voltage: 265V
• Amperage: 0.46 amps
• Enclosure: Semi Enclosed
• Shaft Dimensions: 3/16" diameter x 2-3/8" length
• Rotation: CCWLE (Counterclockwise Leading Edge)
• Bearings: Ball Bearings

Product Features & Fitment

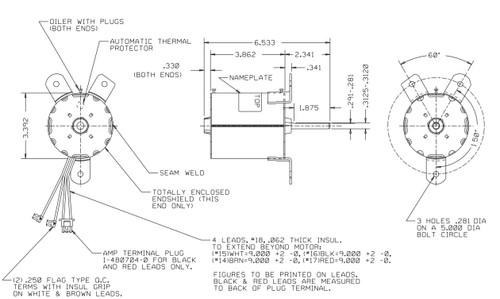

This motor requires a 4 MFD 370V capacitor (sold separately, part #4DV) for proper operation. The motor case length measures 3.862 inches, and its semi-enclosed design with ball bearings ensures durability and smooth performance in HVAC fan applications.

Cross Reference

• Amana K33HXCDR-934, 10292803, K033CDR0934AC1B

Warranty

1 Year Manufacturer Warranty
