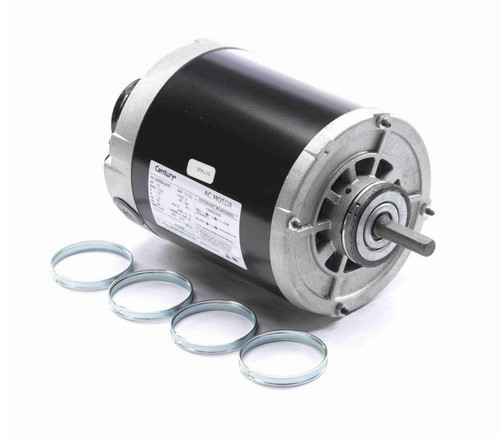

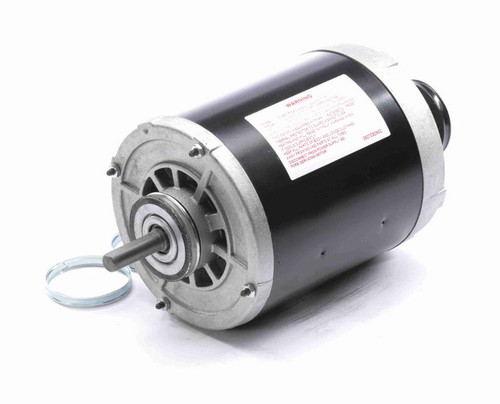

AR2054 Century 1/2 hp (1 speed) 115V 1800 RPM ODP 48 Frame Split Phase Resilient Base Motor

AR2054 Century 1/2 hp (1 speed) 115V 1800 RPM ODP 48 Frame Split Phase Resilient Base Motor

The AR2054 is a reliable 1/2 horsepower, single-speed motor designed for HVAC blower applications. It replaces standard blower motors and is suitable for both vertical and horizontal shaft orientations in residential or commercial air handling systems.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1800
• Voltage: 115 V
• Amperage: 7.2 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 48 Frame
• Shaft Dimensions: 1 5/8" length x 1/2" diameter
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This split phase motor features an adjustable ring mount and a resilient base for secure installation and vibration reduction. It includes thermal auto-protection and Class B insulation for enhanced durability. The motor shaft is flat and designed for flexible mounting options, accommodating different blower configurations.

Warranty

1 Year Manufacturer Warranty
