ASB505 US Motors 3 hp 3450/1725 RPM 56 Frame 230V Thru-Bolt Pool-Spa Motor

ASB505 US Motors 3 hp 3450/1725 RPM 56 Frame 230V Thru-Bolt Pool-Spa Motor

This US Motors ASB505 is a 3 HP single-phase pool and spa motor designed to replace models such as the TT505. It is ideal for above-ground swimming pool and spa pump applications, compatible with brands like Hayward Powerflo, Waterway, Aquaflo, and Dynamo.

Key Specifications

• Horsepower: 3 HP
• RPM: 3450/1725
• Voltage: 230V
• Amperage: 12.0 amps
• Enclosure: NEMA 56 Open Frame

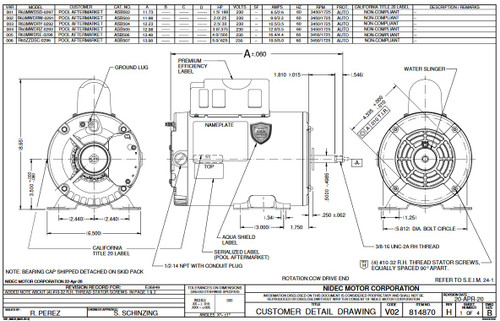

• Frame / Diameter: 56 Frame, 5 1/8" thru-bolt on center
• Shaft Dimensions: 1/2" diameter stainless steel shaft with 3/8" diameter end thread
• Rotation: Non-Reversible, CCW facing shaft
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a capacitor start with a 1.0 service factor, auto overload thermal protection, and Class F insulation. It has a rigid base mount with a 3 1/2" shaft height and includes a wiring connection diagram on the motor nameplate for ease of installation. The motor is designed for single-phase 60 Hz operation and is suitable for retrofit or replacement in various above-ground pool and spa pump systems.

Please verify local and state regulations before installation, as this motor does not comply with certain energy efficiency standards in California and New York, which may restrict its use or shipment in those states.

Cross Reference

• TT505
• Effective July 19, 2021 the US Dept of Energy regulations on single speed, two-speed and booster pumps go into effect

Warranty

1 Year Manufacturer Warranty
