Century Electric Motor
B2984 Century 2 hp 2-Speed 56Y Frame 230V Square Flange Pool Motor Century # B2984

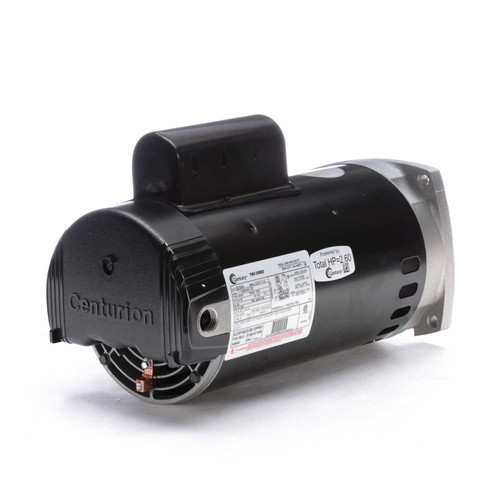

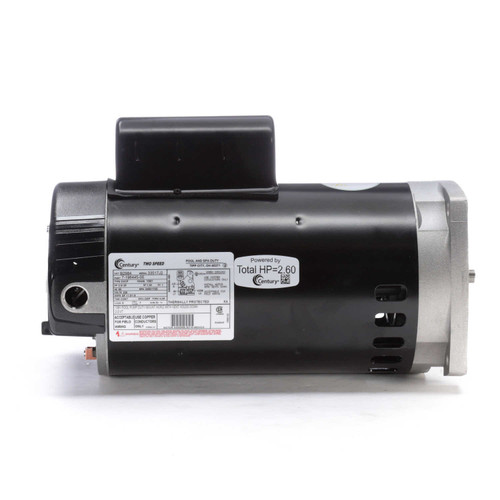

Century B2984 2 HP 2-Speed 56Y Frame 230V Square Flange Pool Motor
The Century B2984 is a 2 horsepower, 2-speed replacement motor designed for inground pool pumps. It fits many popular models including PacFab Challenger, Whisperflo, and Pentair, providing reliable operation for pool circulation systems.
Key Specifications
- Horsepower: 2 HP
- RPM: 3450 / 1725 (High/Low Speed)
- Voltage: 230V
- Amperage: 11.0 / 1.8 Amps
- Enclosure: Open Drip Proof
- Frame / Diameter: 56Y Frame, Square Flange
- Shaft Dimensions: 5/8" diameter threaded stainless steel shaft
- Rotation: Counterclockwise (CCW) facing the shaft
- Bearings: Ball Bearings
Product Features & Fitment
This energy-efficient motor features automatic overload protection and a service factor of 1.30. It is non-reversible and designed for direct replacement of Century B984 and US Electric EB984 motors. The motor does not include a power cord or high/low toggle switch. Wiring diagrams are provided on the motor nameplate for ease of installation.
Please note that shipping restrictions apply due to state energy regulations. This motor does not comply with California Title 20 or New York NYSERDA standards, which require variable speed motors. For compliance and enhanced efficiency, upgrading to a variable speed motor such as the Century EVQ225 2.25THP is recommended.
Cross Reference
- Century B984
- Century Part No. 7-196445-05, 196445
- US Electric Equivalent EB984
- Effective July 19, 2021 the US Dept of Energy regulations on single speed, two-speed and booster pumps go into effect
Warranty
| Compliance Tab | /content/product_tabs/california.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 230V |
| Horsepower | 2 HP |
| RPM | 3450 |
| Phase | Single Phase |
| Frame | 56Y |
| Hertz | 60 Hz |
| Amperage | 11.0/1.8 Amps |
| Bearings | Ball Bearings |
| Speeds | 2-Speed |
| Service Factor | 1.30 |
| Rotation | Counter-Clockwise |
- Century B984
- Century Part No. 7-196445-05, 196445
- US Electric Equivalent EB984
- Effective July 19, 2021 the US Dept of Energy regulations on single speed, two-speed and booster pumps go into effect
