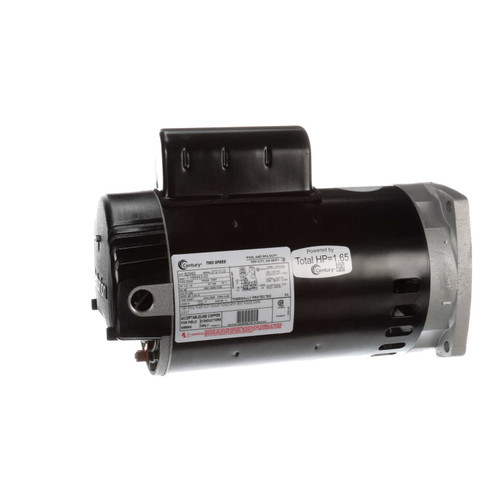

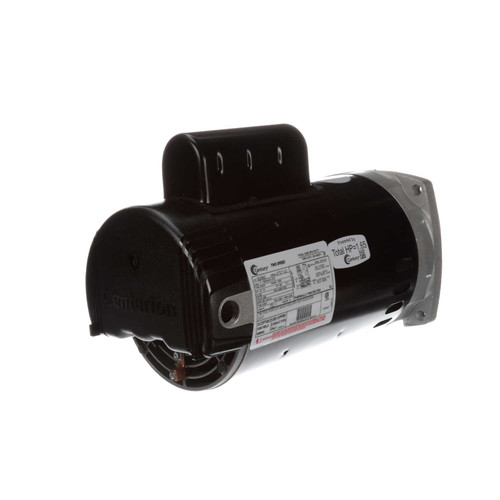

B2982 Century 1 hp 2-Speed 56Y Frame 230V Square Flange Pool Motor Century # B2982

B2982 Century 1 hp 2-Speed 56Y Frame 230V Square Flange Pool Motor

This Century B2982 is a 1 horsepower, 2-speed square flange pool motor designed as a direct replacement for various in-ground pool pumps including PacFab Challenger, Whisperflo, and Pentair models. It replaces Century B982 and US Electric EB982 motors, providing reliable operation for residential pool pump applications.

Key Specifications

• Horsepower: 1 HP
• RPM: 3450 / 1725 (High/Low Speed)
• Voltage: 230 V
• Amperage: 7.4 / 1.4 A
• Enclosure: Open Drip Proof
• Frame / Diameter: 56Y Frame, Square Flange
• Shaft Dimensions: 5/8" diameter threaded stainless steel shaft
• Rotation: Counterclockwise (CCW) facing the shaft
• Bearings: Ball Bearings

Product Features & Fitment

This energy-efficient motor features automatic overload protection with a service factor of 1.65 and supports high and low speed operation. It is non-reversible with counterclockwise rotation when facing the shaft. The motor does not include a power cord or a high/low toggle switch and comes with a wiring diagram on the motor nameplate for ease of installation.

Please note that this motor is subject to shipping restrictions due to state energy regulations. It does not comply with California Title 20 or New York NYSERDA standards, which require variable speed motors. Customers are advised to verify local codes before purchase and consider upgrading to a variable speed motor for compliance and improved efficiency.

Cross Reference

• Century B982
• Century Part No. 7-196443-05, 196443
• US Electric Equivalent EB982
• Effective July 19, 2021 the US Dept of Energy regulations on single speed, two-speed and booster pumps go into effect

Warranty

• Mechanical Dimensions
• Pool Motor Manual
• Brochure
