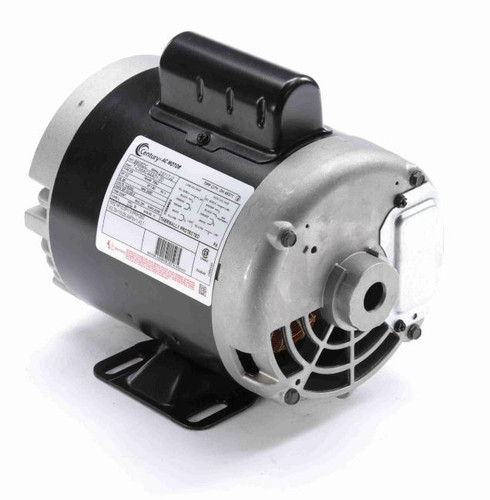

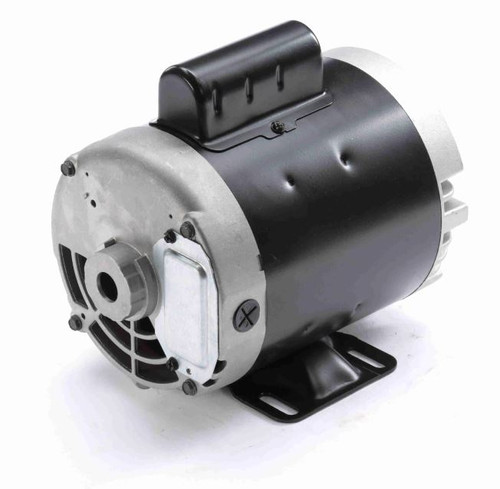

B606DC Century 1/2 hp Basic Jet Pump Motor 3600 RPM 115/208-230V ODP 56J Frame (rigid base)

B606DC Century 1/2 hp Basic Jet Pump Motor 3600 RPM 115/208-230V ODP 56J Frame (rigid base)

This Century 1/2 horsepower jet pump motor is designed for reliable performance in residential and light commercial water pumping applications. It serves as a direct replacement for basic jet pump motors requiring a 56J frame and rigid base mounting.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 3600
• Voltage: 115/208-230 V
• Amperage: 10.0/5.0 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56J
• Shaft Dimensions: 5/8" diameter by 1-5/8" long, threaded stainless steel
• Rotation: Clockwise (viewed opposite shaft end)
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a capacitor start and operates at 60 Hz with a service factor of 1.6 and automatic overload protection for enhanced durability. It includes a rigid base for stable mounting and is built with Class B insulation to withstand thermal stress during operation.

Warranty

1 Year Manufacturer Warranty
