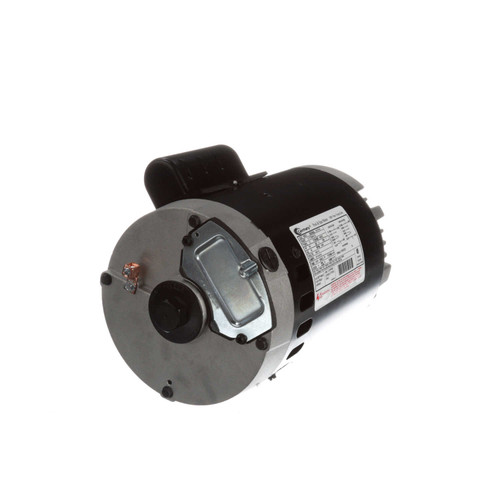

B625 Century 3/4 hp 3450 RPM 115/230V 56CZ Polaris Booster Pump Motor for PB460 Pump Century # B625

B625 Century 3/4 hp 3450 RPM 115/230V 56CZ Polaris Booster Pump Motor for PB460 Pump

This direct OEM replacement motor is designed specifically for the Polaris PB4-60 booster pump, providing reliable performance and compatibility. It replaces Century models PL1072, 0-173840-23, 173840, and US Electric equivalents EB625 and ASB625.

Key Specifications

• Horsepower: 3/4 HP
• RPM: 3450
• Voltage: 115/230V
• Amperage: 12.8/6.4 amps
• Rotation: Counterclockwise (CCW) facing the shaft
• Shaft Dimensions: 5/8" diameter threaded shaft x 3 5/8" length
• Frame / Diameter: 56CZ
• Bearings: Ball bearings

Product Features & Fitment

This motor features automatic overload protection with a service factor of 1.50 and a stainless steel shaft. It has a “C-face” mount with four threaded bolt holes spaced 5 7/8" on center across the shaft. The motor body is round and does not include a base.

This replacement motor fits Polaris PB4-60 and PB460 pumps only and is not compatible with Pentair or Hayward pool pumps. It does not include gaskets or seals. Please verify local and state regulations before purchase, as this motor does not comply with California Title 20 or New York NYSERDA efficiency standards, restricting shipment to those states.

Cross Reference

• Century PL1072, 0-173840-23, 173840
• US Electric Equivalent EB625, ASB625
• Effective July 19, 2021 the US Dept of Energy regulations on single speed, two-speed and booster pumps go into effect

Warranty

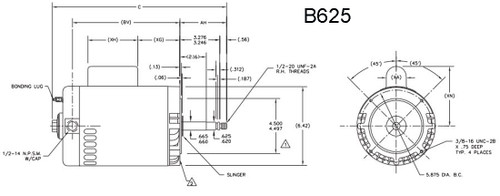

• Dimensional Drawing
• Pool Motor Manual
• Seal Reference Chart
