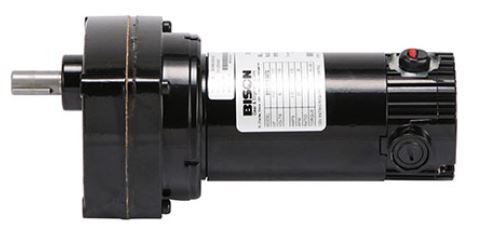

Bison 011-190-0096 Gear Motor | 1/20 hp 20 RPM 90VDC (Dayton 6Z913 Interchange)

Bison 011-190-0096 Gear Motor | 1/20 hp 20 RPM 90VDC (Dayton 6Z913 Interchange)

The Bison Model 011-190-0096 is a 100 Series DC parallel shaft gear motor designed as a direct replacement for the Dayton Model 6Z913. It is ideal for applications requiring reliable, reversible low-speed operation with high torque.

Key Specifications

• Horsepower: 1/20 hp
• RPM: 20 RPM at 90 VDC, 29 RPM at 130 VDC
• Voltage: 90 VDC (rated), 130 VDC (maximum)
• Amperage: 0.47 amps
• Enclosure: Totally Enclosed Non-Ventilated (TENV)
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

This gear motor features a permanent magnet motor with a hardened steel worm and forged bronze gear, providing durable and efficient power transmission. It is sealed and gasketed with a lifetime oil bath lubrication system, allowing for operation at any mounting angle. Optional accessories include a junction box (P198-100-9111) and a mounting plate (P125-100-9998). It is compatible with Leeson speed controls (models 174307 and 174308) and accepts replacement brush sets (#P158-200-2600).

Cross Reference

• Dayton Model 6Z913

Warranty

• Bison Catalog Page
