Bison 011-175-0096 Gear Motor 1/20 hp 19 RPM 90/130VDC

SKU:
011-175-0096
Availability:
Bison is requiring minimum qty purchases, with a lead time of 12 weeks to manufacture the motors.
Weight:
9.00 LBS
Minimum Purchase:
25 units
Shipping:
Free Shipping
Confirmations:
All purchases understand the lead time requirements, we will not be sending out update emails.
Was: $695.02
Now: $556.02
Adding to cart… The item has been added

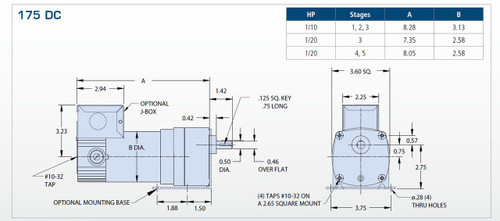

  • 175 Series DC Parallel Shaft Gear Motor - Subject to factory availability-email or call for availability
  • Torque 155 inch pounds
  • Over Hung lbs. = 150
  • 3 Stages
  • Rotation = Reversible
  • 1/20 hp 19 RPM, .58 amps, 90 Volts DC
  • TENV Enclosure, Keyed Shaft, Ball Bearings

Optional Accessories: P198-100-9111 Junction Box, P125-100-9998 Mounting Plate. Permanent Magnet motor, Insulation Class B; Finish: Powder-coat gloss black; Brushes: Replaceable; Gearhead Specifications: Housing - Precision machined die cast aluminum; Shafts - Hardened steel; Gearing: Hardened Steel worm. Forged bronze gear; Lubrication: Lifetime oil bath, sealed and gasketed; Any angle mount; Bearings - Ball and Needle Bearings. Can use with Leeson speed control 174307, 174308.Suggested replacement reference for: Baldor GPP232110.
