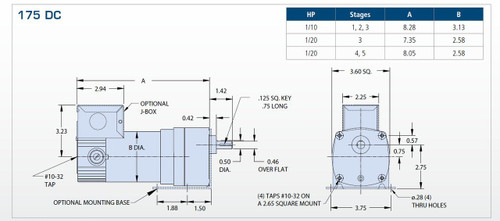

- 175 Series DC Parallel Shaft Gear Motor - Subject to factory availability-email or call for availability
- Torque 170 inch pounds
- Over Hung lbs. = 85
- 4 Stages
- Rotation = Reversible
- 1/20 hp 10 RPM, .40 amps, 90 Volts DC
- TENV Enclosure, Keyed Shaft, Ball Bearings
Optional Accessories: P198-100-9111 Junction Box, P125-100-9998 Mounting Plate. Permanent Magnet motor, Insulation Class B; Finish: Powder-coat gloss black; Brushes: Replaceable; Gearhead Specifications: Housing - Precision machined die cast aluminum; Shafts - Hardened steel; Gearing: Hardened Steel worm. Forged bronze gear; Lubrication: Lifetime oil bath, sealed and gasketed; Any angle mount; Bearings - Ball and Needle Bearings. Suggested replacement reference for: Baldor GPP233141. Can use with Leeson speed control 174307, 174308.
