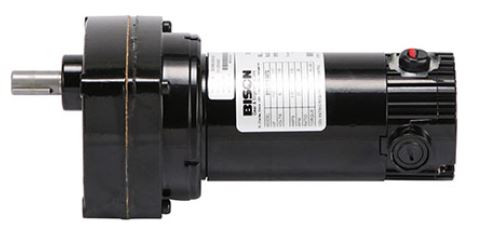

Bison 011-190-0005 Gear Motor 1/20 hp 359 RPM 90/130VDC

Bison 011-190-0005 Gear Motor 1/20 hp 359 RPM 90/130VDC

The Bison 011-190-0005 is a 100 Series DC parallel shaft gear motor designed for reliable industrial applications requiring precise speed control and reversible operation. It is suitable for replacing similar permanent magnet motors in various equipment setups.

Key Specifications

• Horsepower: 1/20 hp
• RPM: 359 RPM (90 VDC), 519 RPM (130 VDC)
• Voltage: 90/130 VDC
• Amperage: 0.62 amps
• Enclosure: Totally Enclosed Non-Ventilated (TENV)
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This gear motor features a hardened steel worm and forged bronze gear, ensuring durability and efficient torque delivery of 8 inch-pounds. It is equipped with a permanent magnet motor and supports any angle mounting, with lubrication provided by a lifetime sealed oil bath. Optional accessories include a junction box (P198-100-9111) and a mounting plate (P125-100-9998). It is compatible with Leeson speed controls (models 174307 and 174308) and has a replacement brush set available (P158-200-2600).

Warranty

• Bison Catalog Page
