Bison 011-190-0072 Gear Motor 1/20 hp 25 RPM 90/130VDC

Bison 011-190-0072 Gear Motor 1/20 hp 25 RPM 90/130VDC

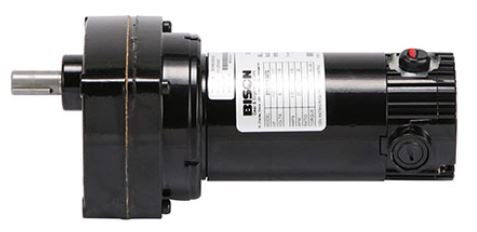

The Bison 011-190-0072 is a 100 Series DC parallel shaft gear motor designed for reliable industrial applications requiring precise speed control and reversible operation. It serves as a direct replacement for similar 1/20 hp motors in HVAC and machinery systems.

Key Specifications

• Horsepower: 1/20 hp
• RPM: 25 RPM at 90 VDC, 36 RPM at 130 VDC
• Voltage: 90/130 VDC
• Amperage: 0.58 amps
• Enclosure: Totally Enclosed Non-Ventilated (TENV)
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This gear motor features a permanent magnet motor with a hardened steel worm and forged bronze gear for durability and efficient torque transmission up to 100 inch-pounds. It is designed for any angle mounting and includes lifetime oil bath lubrication with sealed and gasketed construction to ensure long service life.

Optional accessories include a junction box (P198-100-9111) and mounting plate (P125-100-9998). It is compatible with Leeson speed controls (models 174307 and 174308) and uses replacement brush set P158-200-2600.

Warranty

• Bison Catalog Page
