- 100 Series AC Parallel Shaft Gear Motor - Subject to factory availability-email or call for availability
- Torque 25 inch pounds; Over Hung lbs. = 220

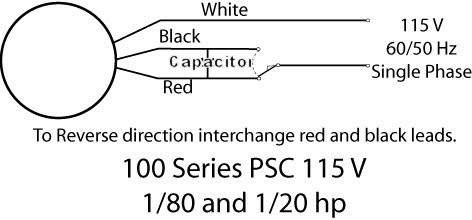

- Rotation = Reversible; Junction Box Included
- 1/20 hp 124 RPM, .62 amps, 115 VAC
- TENV Enclosure, Keyed Shaft, Ball Bearings
Gearhead Specifications: Housing: Precision machined die cast aluminum. Lubrication: Lifetime oil bath, sealed and gasketed. Shafts: Hardened steel. Mounting: Face (any angle) or optional footplate. Gearing: 1st stage helical metal, balance spur metal. Bearings: Needle bearings on output shaft. P125-100-9998 Optional Bison Gearmotor Mounting Bracket. One Year Manufacture Warranty. Opening motor voids the warranty. Dayton equivilient 6Z084.
