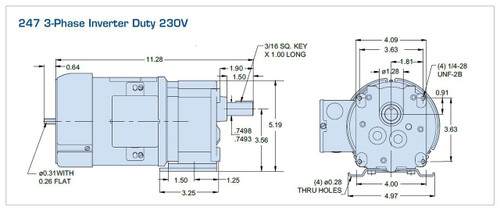

Bison 017-247-0005 Inverter Duty Gear Motor 1/4 hp 350 RPM 230V

SKU:
017-247-0005
Availability:
Bison is requiring minimum qty purchases, with a lead time of 12 weeks to manufacture the motors.
Weight:
18.00 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping
Confirmations:
All purchases understand the lead time requirements, we will not be sending out update emails.
Was: $1,010.08
Now: $777.86
Adding to cart… The item has been added
  • 247 Series AC Parallel Shaft Gear Motor - Subject to factory availability-email or call for availability
  • Torque 38 inch pounds; Over Hung lbs. = 206
  • Rotation = Reversible; Junction Box Included
  • 1/4 hp 350 RPM, .08 amps; 230V; 6-90 hz.; Three Phase
  • TEFC Enclosure, Keyed Shaft, Ball Bearings

Motor: Meets NEMA MG 1 sct 31; Powder-coat gloss black; Motor Bearings: Double shielded ball; Thermostat: Signal type; closed. UL/CUL recognized. Gearhead Specifications: Precision machined die cast aluminum ; Lubrication: Lifetime oil bath; Hardened steel shafts; Mounting: Face (any angle) or footplate. Gearing: AGMA class 9 heat treated steel, 1st stage helical metal, balance spur metal. Bearings: Needle with thrust ball. One Year Manufacture Warranty. Opening motor voids the warranty.
