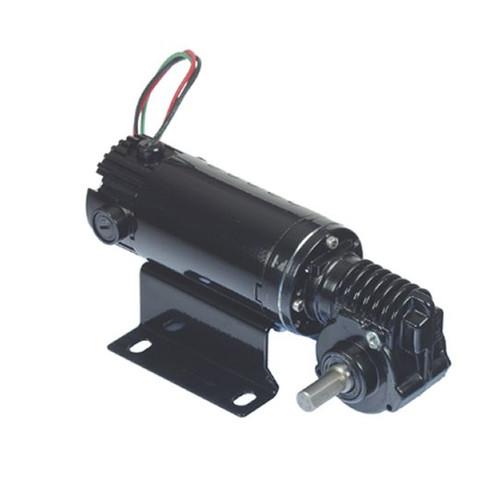

- 746 Series DC Right Angle Gear Motor - Subject to factory availability-email or call for availability
- Torque 15 inch pounds; Over Hung lbs. = 224
- Rotation = Reversible
- 1/15 hp 180 RPM, .8 amps, 90 Volts DC
- TEFC Enclosure, Keyed Shaft, Ball Bearings
Optional Accessories: P198-100-9111 Junction Box, P125-746-0500 Mounting Foot Plate. P158-200-2600, Replacement Brush Set # P158-200-2600. Permanent Magnet motor, Insulation Class B; Finish: Powder-coat gloss black; Brushes: Replaceable; Gearhead Specifications: Housing - Precision machined die cast aluminum; Shafts - Hardened steel; Gearing: Hardened Steel worm. Forged bronze gear; Lubrication: Lifetime oil bath, sealed and gasketed; Any angle mount; Bearings - Ball and Needle Bearings. Suggested replacement reference for: Baldor GP233001. Can use with Leeson speed control 174307, 174308.
