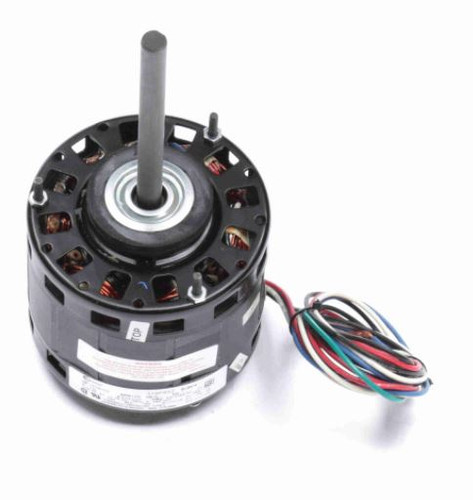

BL6414 Century 1/5 hp 1050 RPM CW 5" 3-Speed 115V Direct Drive Furnace Motor

BL6414 Century 1/5 hp 1050 RPM CW 5" 3-Speed 115V Direct Drive Furnace Motor

The BL6414 is a reliable 1/5 horsepower direct drive furnace motor designed for residential and light commercial HVAC applications. It serves as a replacement for multiple OEM models including Fasco D158 series and Dayton 161M13, ensuring broad compatibility.

Key Specifications

• Horsepower: 1/5 hp
• RPM: 1050
• Voltage: 115V, 60 Hz
• Amperage: 6.5 amps
• Enclosure: Open ventilation, air over
• Shaft Dimensions: 1/2" diameter x 5" length
• Rotation: Clockwise (CW) shaft end
• Bearings: Sleeve bearings

Product Features & Fitment

This shaded pole motor features a resilient ring mount and supports three-speed operation for versatile airflow control. It can be mounted using a belly band or stud mount with a 4.62" bolt circle, and the motor length excluding the shaft measures 3 7/8". Compatible belly band brackets include the Torsion Flex Bracket (#FM50) and the Welded 3-Ring Bracket (#2MEV2), facilitating straightforward installation in existing furnace setups.

Cross Reference

• Fasco D158, 319P852, 319P676, 319P677, U385, 7151-2522, Dayton 161M13, GE 5KSP29HK7351S

Warranty

1 Year Manufacturer Warranty
