BL6420 Century 1/6 hp 1050 RPM 2-Speed CW 5" 115V Direct Drive Furnace Motor

BL6420 Century 1/6 hp 1050 RPM 2-Speed CW 5" 115V Direct Drive Furnace Motor

The BL6420 is a reliable direct drive furnace motor designed for residential and light commercial HVAC applications. It serves as a replacement for Century and compatible models, ensuring efficient operation in furnace blower assemblies.

Key Specifications

• Horsepower: 1/6 hp (also compatible with 1/9 hp)
• RPM: 1050
• Voltage: 115V, 60Hz
• Amperage: 5.6 amps
• Shaft Dimensions: 1/2" diameter x 3 1/2" length
• Rotation: Clockwise (CW) shaft end
• Bearings: Sleeve bearings

Product Features & Fitment

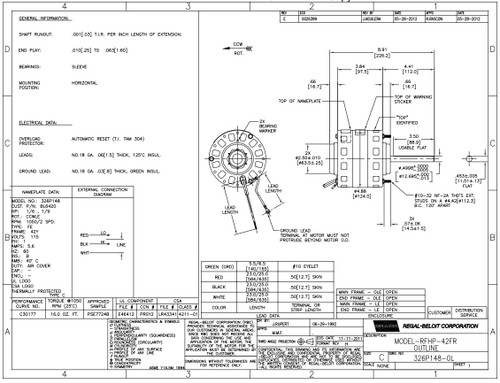

This shaded pole motor features open ventilation and is designed for air-over cooling with a resilient ring mount. It can be mounted using a belly band or stud mount with a bolt circle diameter of 4.62". The motor length excluding the shaft measures 3 7/8". Compatible belly band brackets include the Torsion Flex Bracket (#FM50) and the Welded 3-Ring Bracket (#2MEV2). Cross references include Century 7151-0136 and Dayton 241X19.

Warranty

1 Year Manufacturer Warranty
