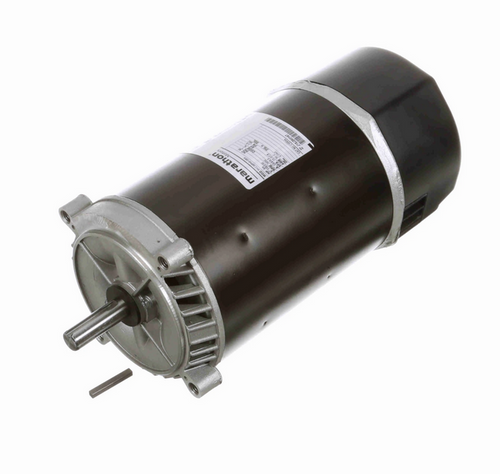

C1083A Marathon 3/4 hp 2-Compartment Jet Pump Motor 3600 RPM 115/230V ODP 56C Frame (no base)
C1083A Marathon 3/4 hp 2-Compartment Jet Pump Motor 3600 RPM 115/230V ODP 56C Frame (no base)
C1083A Marathon 3/4 hp 2-Compartment Jet Pump Motor 3600 RPM 115/230V ODP 56C Frame (no base)
C1083A Marathon 3/4 hp 2-Compartment Jet Pump Motor 3600 RPM 115/230V ODP 56C Frame (no base)
C1083A Marathon 3/4 hp 2-Compartment Jet Pump Motor 3600 RPM 115/230V ODP 56C Frame (no base)
C1083A Marathon 3/4 hp 2-Compartment Jet Pump Motor 3600 RPM 115/230V ODP 56C Frame (no base)
C1083A Marathon 3/4 hp 2-Compartment Jet Pump Motor 3600 RPM 115/230V ODP 56C Frame (no base)
C1083A Marathon 3/4 hp 2-Compartment Jet Pump Motor 3600 RPM 115/230V ODP 56C Frame (no base)

Marathon

C1083A Marathon 3/4 hp 2-Compartment Jet Pump Motor 3600 RPM 115/230V ODP 56C Frame (no base)

(No reviews) Write a Review
$280.26
$179.98
SKU C1083A
UPC 7.23E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/230V
Horsepower 3/4 HP
RPM 3600
Frame 56C
Enclosure ODP
Hertz 60 Hz
Amperage 13.0/6.5 Amps
Bearings Ball Bearings
Service Factor 1.5
Insulation Class Class B
Rotation Clockwise
Adding to cart… The item has been added
Description
  • 3/4 hp 3600 RPM, 13.0/6.5 amps, 115/230 volts, Capacitor start / Induction run
  • NEMA 56C Frame, 5'8" dia. by 1-5/8" long keyed shaft, 60 Hz
  • Service Factor: 1.5, Overload protection: Auto
  • No base, CW rotation viewed opposite shaft end, Ball Bearings; Class B Insulation
  • 1 Year Manufacture Warranty

Spa pump motor having two compartments for easy servicing. Not for pool use due to lack of suction cut-off. ODP = Open Drip Proof, 5KC39PN5105X

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/230V
Horsepower 3/4 HP
RPM 3600
Frame 56C
Enclosure ODP
Hertz 60 Hz
Amperage 13.0/6.5 Amps
Bearings Ball Bearings
Service Factor 1.5
Insulation Class Class B
Rotation Clockwise
!
