C1169 Marathon 1/2 hp 2-Compartment Square-Flange Jet Pump Motor
This Marathon 1/2 horsepower jet pump motor is designed for spa pump applications, featuring a two-compartment design for easy servicing. It is not suitable for pool use due to the absence of a suction cut-off.
Key Specifications
- Horsepower: 1/2 hp
- RPM: 3600
- Voltage: 115/230 V
- Amperage: 10.8/5.4 A
- Enclosure: Open Drip Proof (ODP)

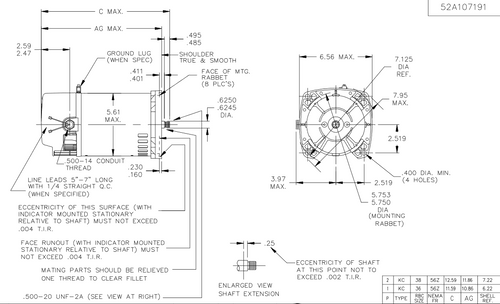

- Frame / Diameter: NEMA 56Y Square Flange, 5" diameter
- Shaft Dimensions: 1-5/8" long threaded shaft
- Rotation: Clockwise (viewed opposite shaft end)
- Bearings: Ball Bearings
Product Features & Fitment
This motor features a capacitor start and induction run design with a service factor of 1.9 and automatic overload protection. It comes without a base and has Class B insulation. The 56Y frame square flange allows for secure mounting in compatible jet pump assemblies.
Warranty
1 Year Manufacturer Warranty
