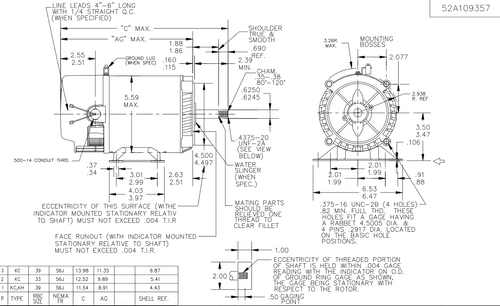

C1464 Marathon 1 hp 2-Compartment Jet Pump Motor 3600 RPM 115/230V ODP 56J Frame (rigid base)
C1464 Marathon 1 hp 2-Compartment Jet Pump Motor 3600 RPM 115/230V ODP 56J Frame (rigid base)
This Marathon 1 hp jet pump motor is designed for spa pump applications, featuring a two-compartment design for easy servicing. It is not suitable for pool use due to the absence of a suction cut-off.
Key Specifications
- Horsepower: 1 hp
- RPM: 3600
- Voltage: 115/230 V
- Amperage: 14.2/7.1 A
- Enclosure: Open Drip Proof (ODP)
- Frame / Diameter: NEMA 56J Frame, 5-⅞" diameter
- Shaft Dimensions: 1-5/8" long threaded shaft
- Rotation: Clockwise (viewed opposite shaft end)
- Bearings: Ball Bearings
Product Features & Fitment
The motor features a rigid base for stable mounting and includes capacitor start with induction run for reliable operation. It operates at 60 Hz with a service factor of 1.4 and automatic overload protection for enhanced durability.
Warranty
1 Year Manufacturer Warranty
