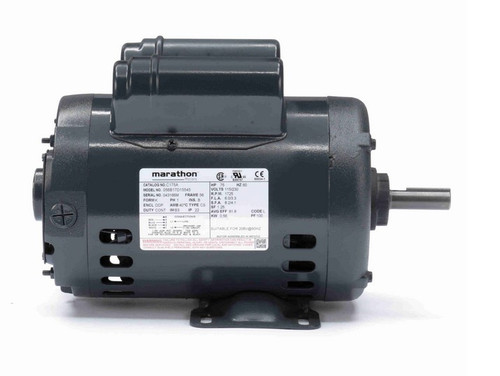

C175B Marathon 3/4 hp 1800 RPM 56 Frame 115/230V Open Drip Marathon Electric Motor

C175B Marathon 3/4 hp 1800 RPM 56 Frame 115/230V Open Drip Marathon Electric Motor

The Marathon C175B is a general-purpose single-phase electric motor designed for versatile industrial and HVAC applications. It replaces Marathon models C175, C175A, and 056B17D15545, offering reliable performance with a capacitor start/run design.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1800
• Voltage: 115/230 V
• Amperage: 6.2/3.3 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount for stable installation and includes a wiring diagram on the nameplate for easy setup. It is equipped with Class B insulation and a service factor of 1.25, suitable for a variety of industrial uses. Note that overload protection is not included.

Cross Reference

• Marathon C175, C175A, 056B17D15545

Warranty

1 Year Manufacturer Warranty
