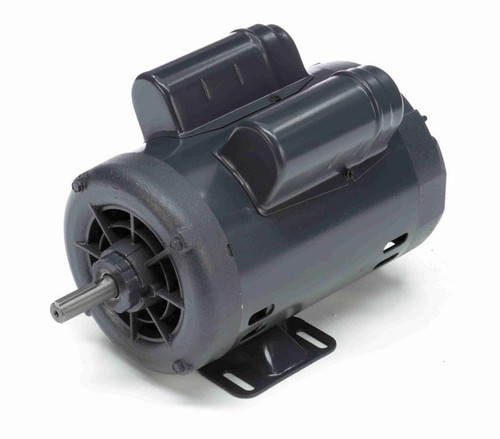

- 1 hp 1800 RPM, 8.4/4.2 amps 115/230 Volts 60hz. Capacitor Start/Run Motor
- NEMA 56 Frame Keyed Shaft 5/8" Diameter x 1 7/8"
- Service Factor: 1.15, Overload protection = None
- Reversible, Rigid Base Mount, Ball Bearings, Class B Insulation
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a single phase electric motor. Wiring diagram on motor name plate. ODP = Open Drip Proof,
Marathon # 056B17D15542
Replaces Leeson C6K17DB52A, E110004.00, 110004.00
Replaces Century C695ES
