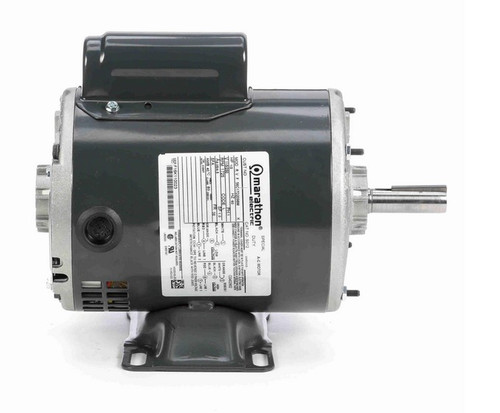

S012 Marathon 1/2 hp 1800 RPM 56 Frame 115/230V Open Drip Marathon Electric Motor

S012 Marathon 1/2 hp 1800 RPM 56 Frame 115/230V Open Drip Marathon Electric Motor

This general-purpose Marathon electric motor delivers reliable single-phase power for a variety of industrial and HVAC applications. It is designed to replace similar 1/2 hp motors requiring a 56 frame, capacitor start configuration.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1800
• Voltage: 115/230V, 60 Hz
• Amperage: 9.1/4.5 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount for secure installation and includes a wiring diagram on the motor nameplate for easy setup. It is equipped with Class B insulation and has a service factor of 1.0. Note that this model does not include overload protection.

Warranty

1 Year Manufacturer Warranty
