sale
Marathon
C168A Marathon 1/2 hp 1800 RPM 56 Frame 115/230V Open Drip Marathon Electric Motor
(No reviews)
Write a Review
Write a Review
Marathon
C168A Marathon 1/2 hp 1800 RPM 56 Frame 115/230V Open Drip Marathon Electric Motor
$363.06
$289.95
SKU
C168A
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115/230V
Horsepower
1/2 HP
RPM
1800
Phase
Single Phase
Frame
56
Enclosure
ODP
Hertz
60 Hz
Amperage
4.6/2.3 Amps
Bearings
Ball Bearings
Service Factor
1.25
Insulation Class
Class B
Mounting
Rigid Base

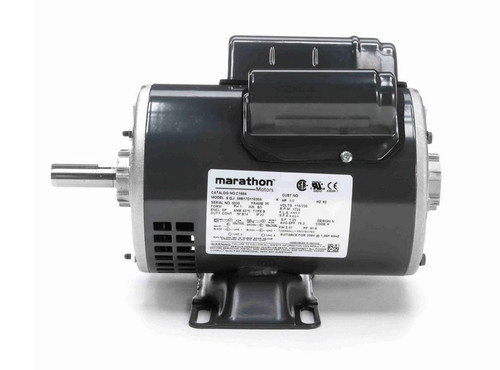

C168A Marathon 1/2 hp 1800 RPM 56 Frame 115/230V Open Drip Marathon Electric Motor
This general-purpose Marathon electric motor delivers 1/2 horsepower at 1800 RPM and is designed for a variety of single-phase applications. It replaces the Century C460ES model and features a durable open drip proof (ODP) enclosure suitable for many industrial uses.
Key Specifications
- Horsepower: 1/2 hp
- RPM: 1800
- Voltage: 115/230 V
- Amperage: 4.6/2.3 A
- Enclosure: Open Drip Proof (ODP)
- Frame / Diameter: NEMA 56 Frame
- Shaft Dimensions: 5/8" Diameter x 1 5/8" Length, keyed shaft
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
This capacitor start/run motor includes a rigid base mount for secure installation and features Class B insulation for reliable operation. It has an automatic overload protection system and a wiring diagram conveniently located on the motor nameplate to assist with proper electrical connections.
Cross Reference
- Century C460ES
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115/230V |
| Horsepower | 1/2 HP |
| RPM | 1800 |
| Phase | Single Phase |
| Frame | 56 |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 4.6/2.3 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.25 |
| Insulation Class | Class B |
| Mounting | Rigid Base |
- Century C460ES
