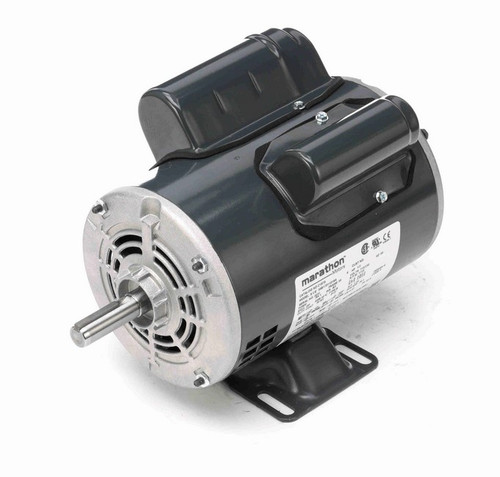

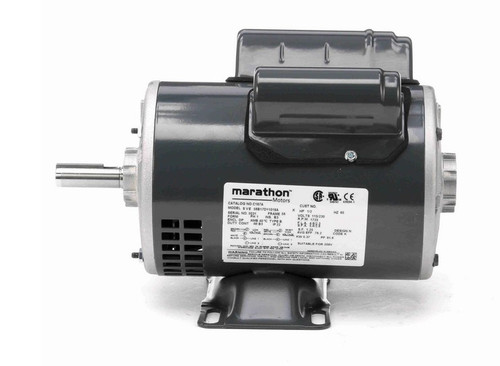

C167A Marathon 1/2 hp 1800 RPM 56 Frame 115/230V Open Drip Marathon Electric Motor
C167A Marathon 1/2 hp 1800 RPM 56 Frame 115/230V Open Drip Marathon Electric Motor
C167A Marathon 1/2 hp 1800 RPM 56 Frame 115/230V Open Drip Marathon Electric Motor
C167A Marathon 1/2 hp 1800 RPM 56 Frame 115/230V Open Drip Marathon Electric Motor
C167A Marathon 1/2 hp 1800 RPM 56 Frame 115/230V Open Drip Marathon Electric Motor
C167A Marathon 1/2 hp 1800 RPM 56 Frame 115/230V Open Drip Marathon Electric Motor
C167A Marathon 1/2 hp 1800 RPM 56 Frame 115/230V Open Drip Marathon Electric Motor
C167A Marathon 1/2 hp 1800 RPM 56 Frame 115/230V Open Drip Marathon Electric Motor

Marathon

C167A Marathon 1/2 hp 1800 RPM 56 Frame 115/230V Open Drip Marathon Electric Motor

(No reviews) Write a Review
$440.57
$384.33
SKU MC167A
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/230V
Horsepower 1/2 HP
RPM 1800
Phase Single Phase
Frame 56
Enclosure ODP
Hertz 60 Hz
Amperage 4.6/2.3 Amps
Bearings Ball Bearings
Service Factor 1.25
Insulation Class Class B
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1/2 hp 1800 RPM, 4.6/2.3 amps 115/230 Volts 60hz. Capacitor Start/Run Motor
  • NEMA 56 Frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.25, Overload protection = None
  • Reversible, Rigid Base Mount, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase electric motor. Wiring diagram on motor name plate. ODP = Open Drip Proof

Marathon Model: 056B17D11018
Replaces Leeson C4K17DH6A, E100007.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/230V
Horsepower 1/2 HP
RPM 1800
Phase Single Phase
Frame 56
Enclosure ODP
Hertz 60 Hz
Amperage 4.6/2.3 Amps
Bearings Ball Bearings
Service Factor 1.25
Insulation Class Class B
Mounting Rigid Base
!
