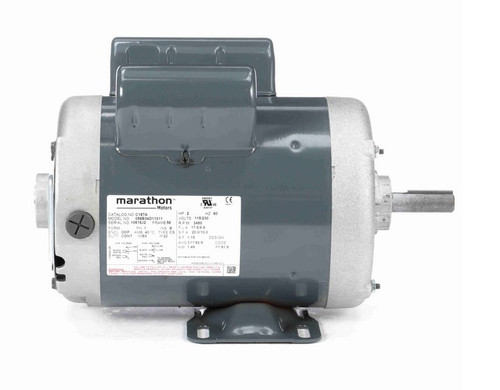

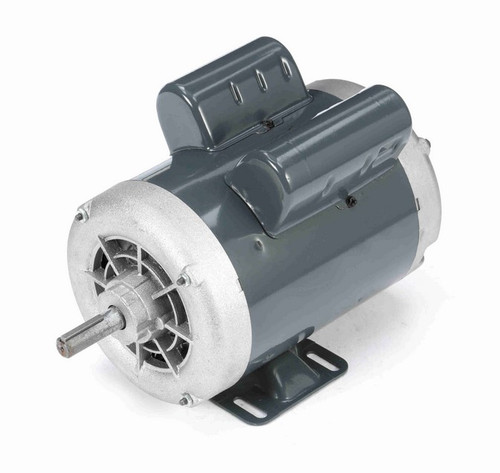

C187A Marathon 2HP 3600 RPM 56 Frame 115/230V Open Drip Marathon Electric Motor
(No reviews)
Write a Review
Write a Review
Marathon
C187A Marathon 2HP 3600 RPM 56 Frame 115/230V Open Drip Marathon Electric Motor
$714.15
$625.83
SKU
MC187A
UPC
7.23E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115/230V
Horsepower
2 HP
RPM
3600
Phase
Single Phase
Frame
56
Enclosure
ODP
Hertz
60 Hz
Amperage
14.2/7.1 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class B
Mounting
Rigid Base
- 2 hp 3600 RPM, 14.2/7.1 amps 115/230 Volts 60hz. Capacitor Start/Run Motor
- NEMA 56 Frame Keyed Shaft 5/8" Diameter x 1 7/8"
- Service Factor: 1.15, Overload protection = None
- Reversible, Rigid Base Mount, Ball Bearings, Class B Insulation
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a single phase electric motor. Wiring diagram on motor name plate. ODP = Open Drip Proof
Marathon Model: 056B34D11011
Replaces Leeson C6K34DB33A, E110363.00
