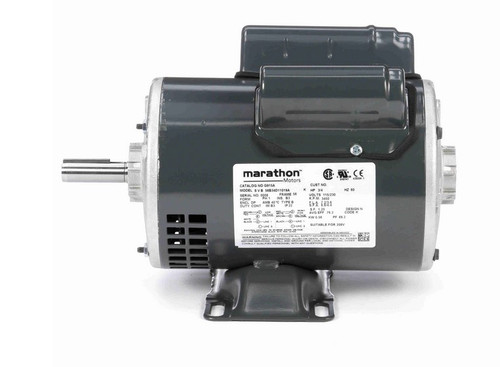

G915A Marathon 3/4 hp 3600 RPM 56 Frame 115/230V Open Drip Marathon Electric Motor

G915A Marathon 3/4 hp 3600 RPM 56 Frame 115/230V Open Drip Marathon Electric Motor

The Marathon G915A is a versatile 3/4 horsepower single-phase electric motor designed for general-purpose applications. It replaces Leeson models E100340.00, E100340, and C4K34DH4A, providing reliable performance in various industrial and HVAC settings.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 3600
• Voltage: 115/230 V
• Amperage: 7.2/3.6 A
• Enclosure: Open Drip Proof (ODP)

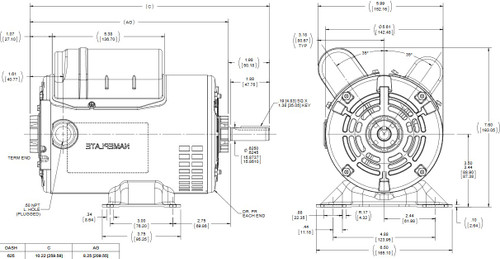

• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length, Keyed Shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a capacitor start/run design with Class B insulation and a service factor of 1.25. It includes a rigid base mount for stable installation and comes with a wiring diagram on the motor nameplate for easy setup. Note that overload protection is not included.

Cross Reference

• Leeson E100340.00, E100340, C4K34DH4A

Warranty

1 Year Manufacturer Warranty
