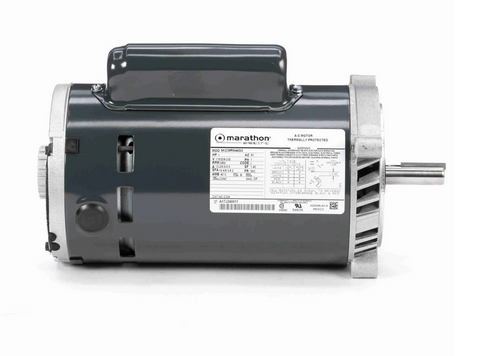

C334 Marathon 1 hp Basic Jet Pump Motor 3600 RPM 115/208-230V ODP 56C Frame (no base)
(No reviews)
Write a Review
Write a Review
Marathon
C334 Marathon 1 hp Basic Jet Pump Motor 3600 RPM 115/208-230V ODP 56C Frame (no base)
$312.46
$272.44
SKU
C334
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115/208/230V
Horsepower
1 HP
RPM
3600
Frame
56C
Enclosure
ODP
Hertz
60 Hz
Amperage
6.5 Amps
Bearings
Ball Bearings
Service Factor
1.4
Insulation Class
Class B
Rotation
Reversible
- 1 hp 3600 RPM, 13.2/6.6-6.5 amps, 115/208-230 volts, Capacitor Start / Induction Run

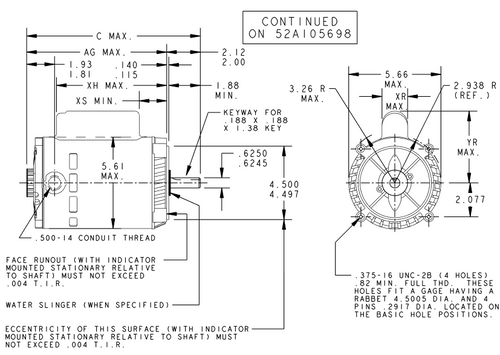

- NEMA 56C Frame, 5'8" dia. by 1-5/8" long keyed shaft, 60 Hz
- Service Factor: 1.4, Overload protection: Auto
- No base, Reversible rotation, Ball Bearings; Class B Insulation
- 1 Year Manufacture Warranty
Spa pump motor. Not for pool use due to lack of suction cut-off. ODP = Open Drip Proof
Marathon # 5KC39RN44X
Replaces Leeson Model A4C34DC21F; 100722.00
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115/208/230V |
| Horsepower | 1 HP |
| RPM | 3600 |
| Frame | 56C |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 6.5 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.4 |
| Insulation Class | Class B |
| Rotation | Reversible |
