C338 Marathon 2 HP (1 speed) 115/208-230V 3600 RPM ODP 56C Pump Motor
(No reviews)
Write a Review
Write a Review
Marathon
C338 Marathon 2 HP (1 speed) 115/208-230V 3600 RPM ODP 56C Pump Motor
$535.90
$429.95
SKU
C338
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115/208/230V
Horsepower
2 HP
RPM
3600
Frame
56C
Enclosure
ODP
Hertz
60 Hz
Amperage
10.6 Amps
Bearings
Ball Bearings
Speeds
1-Speed
Insulation Class
Class B

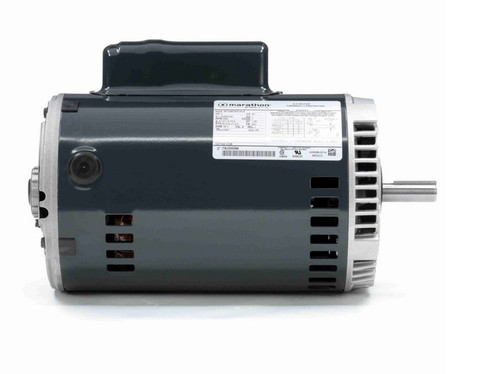

C338 Marathon 2 HP (1 speed) 115/208-230V 3600 RPM ODP 56C Pump Motor
This Marathon general purpose pump motor delivers 2 horsepower at 3600 RPM with a single-speed operation. It is designed to replace Leeson Model U6C34DC19G (110289.00) and is ideal for various pump applications requiring reliable performance.
Key Specifications
- Horsepower: 2 HP
- RPM: 3600
- Voltage: 115/208-230 V, 60 Hz
- Amperage: 21.2 / 11.5 - 10.6 A
- Enclosure: Open Drip Proof (ODP)
- Frame / Diameter: NEMA 56C Frame
- Shaft Dimensions: 2" length x 5/8" diameter
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
This motor features a capacitor start and Class B insulation for efficient and durable operation. It includes thermal auto protection and a service factor of 1.2 to ensure reliable performance under varying loads. The motor’s NEMA 56C frame and shaft dimensions allow for straightforward mounting in standard pump assemblies.
Cross Reference
- Leeson Model U6C34DC19G; 110289.00
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
