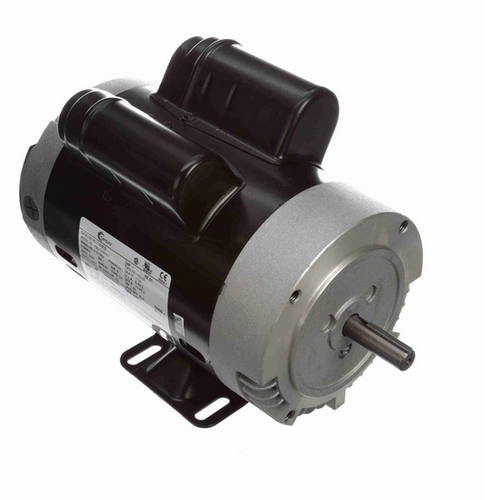

C530ES Century 1 hp 1800 RPM 56C Frame (Rigid Base) 115/230V ODP 1-Phase Motor

C530ES Century 1 hp 1800 RPM 56C Frame (Rigid Base) 115/230V ODP 1-Phase Motor

The C530ES is a general-purpose, single-phase motor designed for reliable operation in various industrial and HVAC applications. It serves as a direct replacement for motors requiring a 1 hp, 1800 RPM rating with a rigid base mounting configuration.

Key Specifications

• Horsepower: 1 hp
• RPM: 1800
• Voltage: 115/230 V
• Amperage: 8.4/4.2 A
• Enclosure: Open Drip-Proof (ODP)
• Frame / Diameter: NEMA 56C Rolled Steel Frame
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length, Keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a capacitor start/run design with Class B insulation for enhanced durability. It includes a C-face mount and is equipped with a keyed shaft for secure coupling. Wiring diagrams are conveniently located on the motor nameplate to assist with installation. Note that this model does not include overload protection.

Warranty

1 Year Manufacturer Warranty
