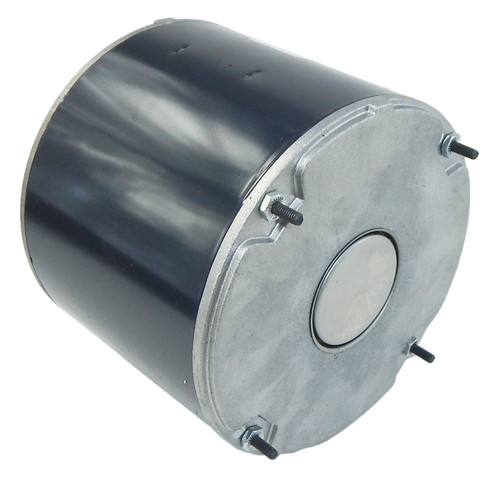

This Carrier condenser fan motor is a direct replacement designed for Carrier A/C units, including models HC37GE208, HC37GE208A, and HC37GE210. It is also compatible with select GE Genteq and Nidec US Motor models, making it ideal for HVAC condenser applications requiring reliable, single-speed operation.

Key Specifications

• Horsepower: 1/5 hp
• RPM: 825
• Voltage: 208-230V
• Amperage: 1.3 amps
• Enclosure: TEAO (Totally Enclosed Air Over)

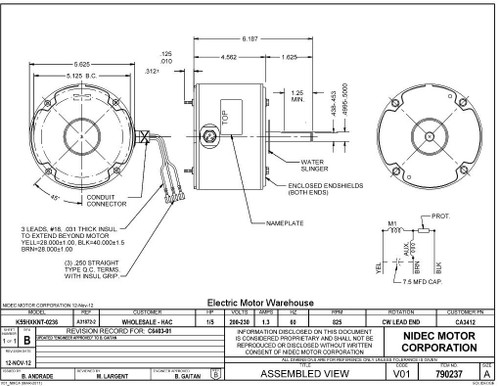

• Frame / Diameter: 5-5/8" body diameter
• Shaft Dimensions: 1/2" diameter x 1.625" length
• Rotation: CCW shaft end
• Bearings: Sleeve bearings

Product Features & Fitment

This motor requires a 7.5 MFD/370VAC run capacitor (sold separately) for proper operation. It features 40" leads and an automatic thermal reset for added protection. Designed for ambient temperatures up to 40°, the motor has a compact case length of 4.56" and is engineered for easy installation in Carrier condenser units. Replacement references include Carrier HC37GE208 series, GE Genteq 3S003 and related models, as well as Nidec US Motor K55HXKNA and K55HXKNT series. It is recommended to replace the run capacitor when installing this motor to ensure optimal performance.

Cross Reference

• Carrier HC37GE208, HC37GE208A, HC37GE210
• GE Genteq 3S003, 5KCP39GFY917S, 5KCP39HGZ037S
• Nidec US Motor K55HXKNA-0219, K55HXKNT-0236, K055KNT0236013B

Warranty

1 Year Manufacturer Warranty
