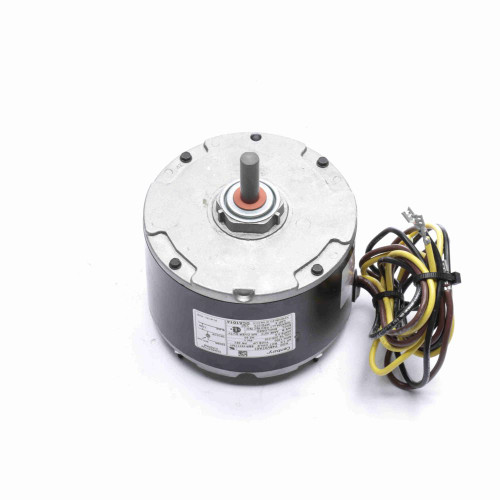

OCA1014 Century Carrier Condenser Electric Motor 1/6 HP, 1500 RPM, .9 amps, 208-230V Century # OCA1014

OCA1014 Century Carrier Condenser Electric Motor 1/6 HP, 1500 RPM, 0.9 Amps, 208-230V

This Century Carrier condenser electric motor is designed as a direct replacement for various HVAC applications, including models such as Dayton 4UY87, 3405, and F48V07A01. It delivers reliable performance with a 1/6 HP rating and is suitable for condenser fan operations.

Key Specifications

• Horsepower: 1/6 HP
• RPM: 1500
• Voltage: 208-230V
• Amperage: 0.9 amps
• Frame / Diameter: 5 5/8" motor diameter
• Shaft Dimensions: 1/2" x 2 1/8"
• Rotation: CCW facing shaft
• Bearings: Sleeve bearings
• Enclosure: TEAO

Product Features & Fitment

This single-speed motor features a 3 5/8" motor case length and comes with 44" leads for easy electrical connections. It requires a 5 MFD 370V capacitor (Century part #5DV) for proper operation. The motor’s counterclockwise rotation (facing the shaft) and sleeve bearing design ensure compatibility with a wide range of condenser fan assemblies.

Cross Reference

• Dayton 4UY87, 3405, F48V07A01

Warranty

1 Year Manufacturer Warranty
