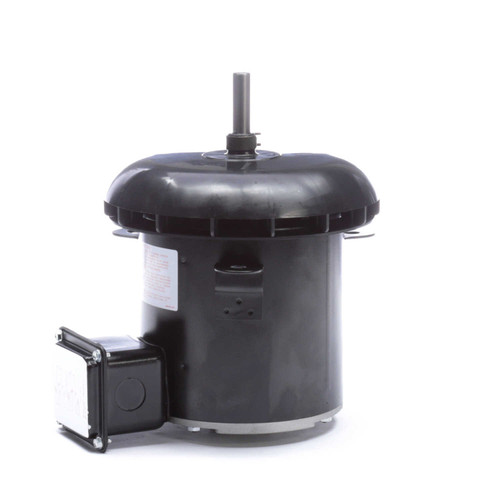

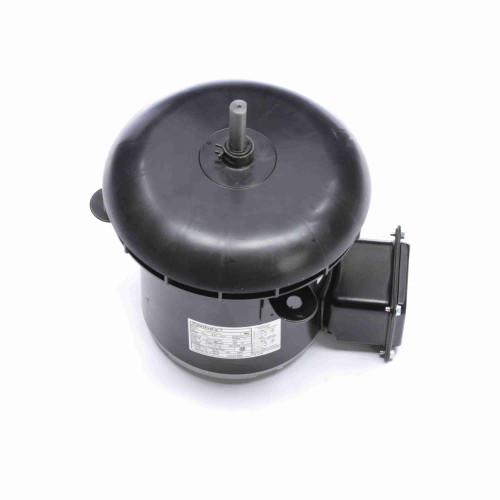

OCA1056 Century Carrier Electric Motor 1/2 hp 1075 RPM 200-230/460V Century # OCA1056

OCA1056 Century Carrier Electric Motor 1/2 hp 1075 RPM 200-230/460V

The OCA1056 is a reliable 1/2 horsepower electric motor designed for HVAC and industrial applications. It serves as a direct replacement for various Century and Carrier motor models, ensuring compatibility and efficient performance.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1075
• Voltage: 200-230/460V
• Amperage: 4.6/2.3 amps
• Frame / Diameter: 5 5/8" motor diameter
• Shaft Dimensions: 1/2" x 1 9/16"
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

This motor features a lug mount design for straightforward installation and requires a 7.5 MFD 370V capacitor (sold separately, part #7.5DV) for proper operation. The motor case length measures 6 3/8", making it suitable for a variety of HVAC equipment. It is a suggested replacement for multiple OEM part numbers including F48SN6MA12, HC43VE200, and Dayton 3RCV2 among others.

Cross Reference

• F48SN6MA12, F48SN6MA13, F48SQ6V14A1, F48SQ6V15, F48SQ6V16, F48SQ6V22, F48SQ6V23,F48SR6V1, F48SR6V2, F48SR6V2A1, HC43VE200, HC43VE200B, HC43VE230, HC43VL600, HC44VE225, HC44VL460, HC44VL650, HC44VL852, 5KCP37SN6S, Dayton 3RCV2

Warranty

1 Year Manufacturer Warranty
