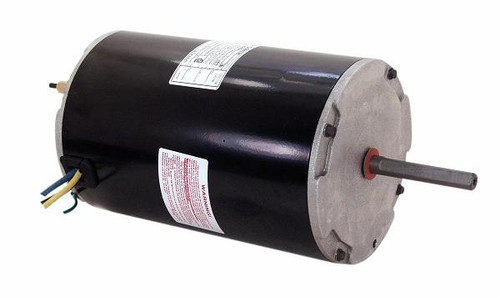

OCA3076 Century Carrier Electric Motor 3/4 hp 1140 RPM 208-230V Century # OCA3076

OCA3076 Century Carrier Electric Motor 3/4 hp 1140 RPM 208-230V

The OCA3076 is a reliable 3/4 horsepower electric motor designed for HVAC and industrial applications. It serves as a suggested replacement for various Century and Dayton motor models, ensuring compatibility and efficient performance.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1140
• Voltage: 208-230V Three Phase
• Amperage: 3.8 amps
• Enclosure: TEAO (Totally Enclosed Air Over)
• Frame / Diameter: 5 5/8" diameter
• Shaft Dimensions: 1/2" diameter x 3" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor operates at a single speed and includes 60-inch leads for flexible wiring options. Its compact case length of 8.75 inches allows for straightforward installation in existing mounts. The reversible rotation feature provides versatility for various HVAC system configurations.

Cross Reference

• P48A27B77, P48A34A27, P48SW6V1, HD46GK230, HD46GK460, HD46L230, 5K39UFL7D18JAS, Dayton 45GM06

Warranty

1 Year Manufacturer Warranty
