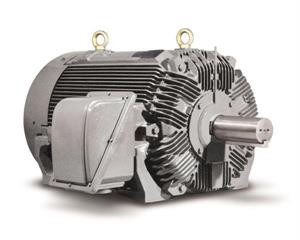

CDP0606 TECO-Westinghouse 60 hp 1200 RPM 404T 230/460V TEFC 3-Phase Petro-Chem Crusher Motor

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

• 60 hp 1200 RPM, 136/68.3 amps 230/460 Volts 60 Hz Three Phase
• NEMA 404T Frame, 7 1/4 x 2 7/8" Dia. Keyed Shaft

• Cast Iron Frame, Totally Enclosed Fan Cooled (IP56)
• Service Factor: 1.15, Thermal Overload Protection: None
• Rigid Base, Reversible, Ball Bearings, Class F Insulation
• Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
• Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
• Motors are U.L. Recognized, CSA Approved and CE Marked
• 1 Year Manufacture Warranty


For use in Severe Duty Crushers, Chippers, or any High-Torque Application Potentially Having Explosive Gases. Certified for Class 1, Division 2, Groups B,C,D; and Class 2, Division 2, Groups F and G.
