Fasco Motors

Fasco B45230 Blower | Electric Motor Warehouse

(No reviews) Write a Review
$210.91
$189.95
SKU B45230
Availability ESTIMATED APRIL 2025
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNT & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 230V
Horsepower 1/20 HP
RPM 1600
Hertz 50/60 Hz
Amperage 1.4/1.2 Amps
Bearings Sleeve Bearings
Speeds 2-Speed
Cross Reference 7063-3515 White = Common Black = High Red = Low
Adding to cart… The item has been added

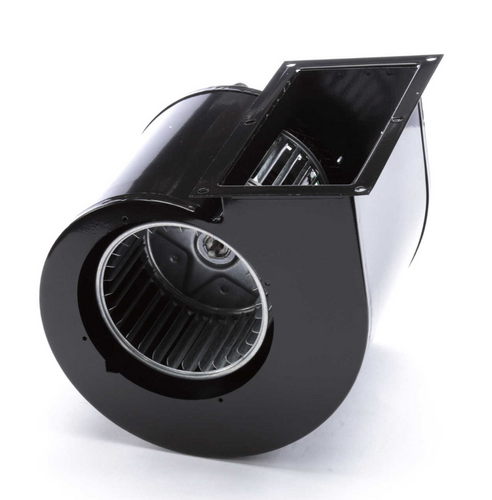

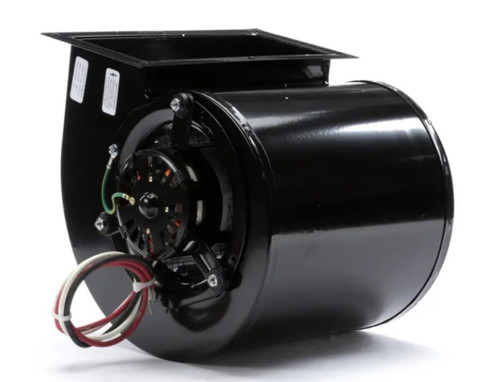

Fasco B45230 Blower

The Fasco B45230 is a 2-speed shaded pole blower designed for HVAC applications and motor replacements. It serves as a suggested replacement for model 7063-3515, providing reliable airflow performance in ventilation systems.

Key Specifications

  • Horsepower: 1/20 hp
  • RPM: 1600/1400
  • Voltage: 230 Volts, 50/60 Hz
  • Amperage: 1.4/1.2 amps
  • Rotation: CCWSE (Counterclockwise Shaft End)
  • Bearings: Sleeve Bearings

Product Features & Fitment

This blower features two speeds, with color-coded wiring for easy identification: white for common, black for high speed, and red for low speed. It is not recommended for speed control applications. The unit delivers a nameplate airflow of 450 CFM and is designed for straightforward installation in compatible HVAC systems.

Cross Reference

  • 7063-3515
  • White = Common
  • Black = High
  • Red = Low

Warranty

1 Year Manufacturer Warranty

1 Year Manufacturer Warranty
Voltage 230V
Horsepower 1/20 HP
RPM 1600
Hertz 50/60 Hz
Amperage 1.4/1.2 Amps
Bearings Sleeve Bearings
Speeds 2-Speed

7063-3515 White = Common Black = High Red = Low
