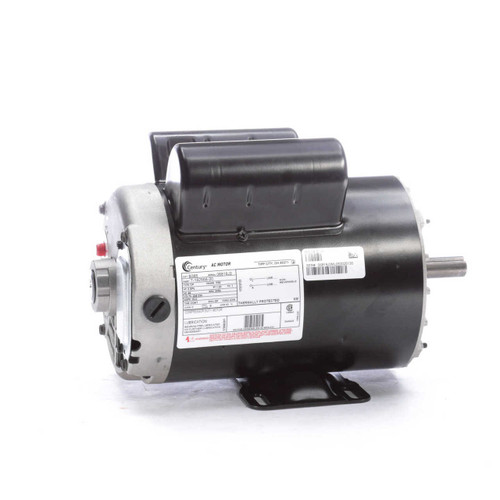

Century B385 Air Compressor Motor

Century B385 Air Compressor Motor

The Century B385 is a high-quality, compressor-duty motor designed as a direct replacement for residential, commercial, and industrial air compressor systems. It delivers dependable starting torque and reliable performance for belt-drive air compressors and general-purpose compressor applications.

Key Specifications

• Horsepower: 5 SPL HP
• RPM: 3450
• Voltage: 208-230 Volts
• Amperage: 15 Amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: P56 Frame
• Rotation: Non-Reversible CCW Shaft End
• Bearings: Ball Bearings
• Shaft Dimensions: Keyed Shaft

Product Features & Fitment

This motor features a capacitor start and capacitor run design to ensure dependable starting torque and smooth operation under repeated start-stop cycles typical of compressor use. It is built to meet or exceed OEM performance standards and includes automatic overload thermal protection for enhanced durability. The motor mounts on a rigid base, making it suitable for straightforward installation in belt-driven air compressor systems.

Cross Reference

• CP1502M (Counter Clockwise Shaft End Only), 141443, 150776, 164593, 164594, 164883, 164886, 165014, 165129, 165339, 165345, 165347, 165430, 165482, 168927, 173181, 173719, 173894, 177513, 177567, 177568, 177595, 182568, 182711, 194160, 2-194160-01, MC024800AV, T63XWBSS1486, 5KCR48UN2553Y, 9040, M9040
