C034 Century ITT Nesbitt 1/6 HP 800 RPM 56Z Frame 115V

C034 Century ITT Nesbitt 1/6 HP 800 RPM 56Z Frame 115V

This 1/6 HP motor is a direct replacement for ITT Nesbitt HVAC wall units commonly found in schools, hotels, hospitals, and ceiling units in auditoriums and gymnasiums. It is designed for reliable performance in various HVAC applications requiring a 56Z frame motor.

Key Specifications

• Horsepower: 1/6 HP
• RPM: 800
• Voltage: 115V
• Amperage: 3.0 amps
• Frame / Diameter: 56Z Frame
• Shaft Dimensions: 21 1/2" x 3/4" x 21 1/2" Double Shaft
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a resilient base and automatic overload protection with Class A insulation for enhanced durability. It utilizes a permanent split capacitor design for efficient operation. This unit is a direct fit replacement, compatible with Dayton 48Y946 and similar ITT Nesbitt HVAC motors.

Cross Reference

• ITT Nesbitt HVAC wall units found in schools, hotels, hospitals and ceiling units located in auditoriums and gymnasiums. Dayton 48Y946

Warranty

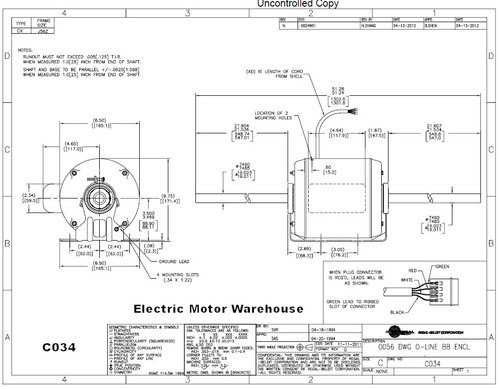

• Dimensional Drawing
• Century Catalog Page
