Century SQ1102 SQ1072 Pool Pump Motor 3/4 HP 3600 RPM 48Y Frame, Square Flange

Century SQ1102 SQ1072 Pool Pump Motor 3/4 HP 3600 RPM 48Y Frame, Square Flange

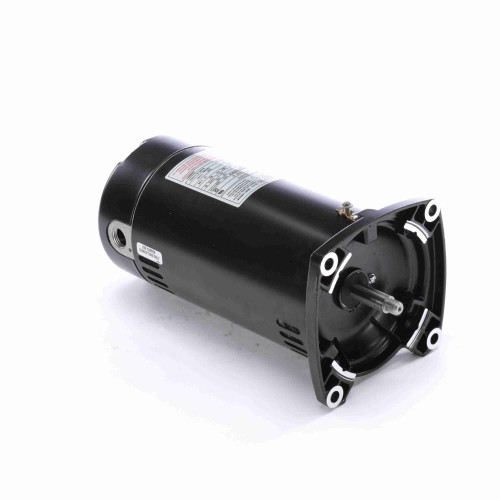

This Century SQ1102 pool pump motor is a 3/4 HP, single-phase replacement motor designed for inground pool pumps. It is compatible with many Sta-Rite, PacFab, Purex/Triton, WhisperFlo, and Challenger pump models, providing reliable performance for pool circulation systems.

Key Specifications

• Horsepower: 3/4 HP
• RPM: 3450 RPM
• Voltage: 230/115 Volt
• Amperage: 7.6/15.3 Amp
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: 48Y Frame
• Shaft Dimensions: 0.625" x 0.906" with 1/2" threaded shaft
• Rotation: Counterclockwise Pump End (CCWPE)
• Bearings: Sealed Ball Bearings

Product Features & Fitment

This single-speed, capacitor start motor features automatic thermal protection and continuous duty rating for dependable operation. It includes a rolled steel frame and a 303 stainless steel shaft, built to UL1081 design standards. The motor mounts via a square flange and does not include a base, with an overall length of 12.82 inches.

Please note, this motor does not comply with California and New York efficiency regulations requiring variable speed motors. For compliance in these states, the Century EVQ130 variable speed motor is recommended as a replacement.

Cross Reference

• S: C48B02B67 C48K2B12 C48K2B16 C48K2E100 C48K2E11 C48K2E11A2 C48K2E12 C48K2EA100 C48K2EA11 C48K2EA11A1 C48K2EA11A3 C48K2EA12 C48K2EB101 C48K2EB102A1 C48K2EB102A2 C48K2EB11 C48K2EB11A3 C48K2EB11P2 C48K2EB12 C48K2EC11 C48K2EC11A4 C48K2EC11C3 C48K2EC15 C48K2ED11 C48K2EM104 C48K2P100 C48K2P102 C48K2PA104A2 C48K2PA105 C48K2PA105A6 C48K2PM100 C48K2PN100 C48K2PU101 C56K2B21 MTR265 165903 168452 B623 B847 B881 7703 EB847 EZ148 SQD75FL1 12196 15815 82196 C1170 C1305 M56630 93630 C48K2PA104A MAX-E-GLAS PE5DL
