CHT75V2CLG Nidec 75 hp 1800 RPM 460V 3-phase 365TP Frame TEFC Holloshaft CORRO-DUTY Motor
CHT75V2CLG Nidec 75 hp 1800 RPM 460V 3-phase 365TP Frame TEFC Holloshaft CORRO-DUTY Motor
CHT75V2CLG Nidec 75 hp 1800 RPM 460V 3-phase 365TP Frame TEFC Holloshaft CORRO-DUTY Motor
CHT75V2CLG Nidec 75 hp 1800 RPM 460V 3-phase 365TP Frame TEFC Holloshaft CORRO-DUTY Motor

Nidec

CHT75V2CLG Nidec 75 hp 1800 RPM 460V 3-phase 365TP Frame TEFC Holloshaft CORRO-DUTY Motor

(No reviews) Write a Review
$15,895.30
$14,192.38
SKU CHT75V2CLG
Availability Please email for availability
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 75 HP
RPM 1800
Phase Three Phase
Frame 365TP
Enclosure TEFC
Hertz 60 Hz
Amperage 85 Amps
Bearings Ball Bearings
Insulation Class Class H
Duty Inverter Duty
Adding to cart… The item has been added
Description
  • 75 HP 1800 RPM, 85 amps, 460V 60 Hz. 3 Phase

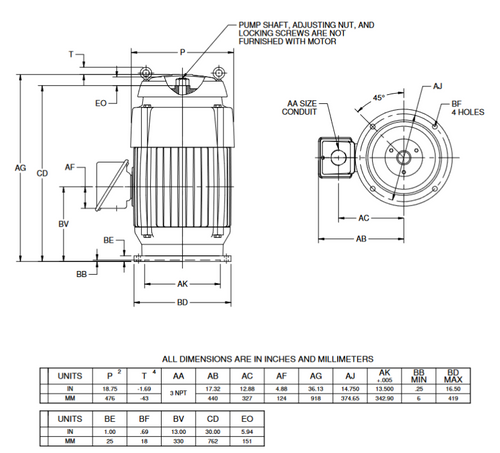

  • NEMA 365TP Frame, TUCI type, 16 1/2" Dia. Base, TEFC
  • 1.15 Service Factor, Class H insulation, Thermal Protection: None
  • Non-Reversible Ratchet Rotation, Weather Protected Enclosure
  • P-Base Mounting, Ball Bearings, High Thrust
  • Coupler: Non-Reverse Ratchet (NRR), Height - 30", Diameter - 1 1/4" , Keyway 1/4"

Vertical pump motor for use on turbine, mix flow, and propeller pumps. TEFC = Totally-Enclosed Fan-Cooled, CORRO-DUTY = All cast iron construction, Inverter Duty. 1 Year Manufacture Warranty. FU35

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 75 HP
RPM 1800
Phase Three Phase
Frame 365TP
Enclosure TEFC
Hertz 60 Hz
Amperage 85 Amps
Bearings Ball Bearings
Insulation Class Class H
Duty Inverter Duty
!
