COLEMAN-MACH 9630A715 | DELUXE CEILING ASSEMBLY NON-DUCTED (WHITE)

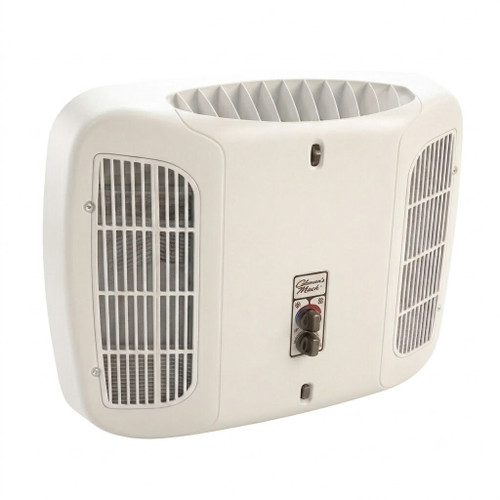

9630A715 Coleman-Mach Deluxe Non-Ducted Heat Pump Ceiling Assembly (White)

The Coleman-Mach 9630A715 is a deluxe-style, non-ducted air distribution box (ADB) ceiling assembly engineered explicitly for free-blow RV climate systems. It is designed for reliable heating and cooling performance in recreational vehicles with standard 14-inch by 14-inch roof openings, serving as the indoor-facing controls and direct air delivery interface for rooftop air conditioner and heat pump modules.

Key Specifications

• Product Type: Non-Ducted Deluxe Ceiling Assembly
• Climate Compatibility: Heat Pump Ready & Electric Heat Strip Compatible
• Control Interface: Integrated Lateral Manual Dials
• Airflow Delivery: Independently Controlled Front and Rear Airflow Dampers
• Electrical Rating: 115 VAC / 60 Hz / 1-Phase
• Filter Type: Dual Pop-Out Grilles with Washable/Reusable Media
• Chassis Thickness: 2.0 Inches (Low-Profile Interior Depth)
• Color / Finish: Textured Polar White
• Product Weight: 7 lbs

Product Features & Fitment

This premium ceiling assembly features a contoured low-profile Euro design that sits just two inches thick against your headliner, perfectly adapting to convex coach ceilings while completely masking old discoloration or original factory imprints. It utilizes multi-directional front and rear airflow dampers, allowing travelers to manually dump massive payloads of conditioned air straight down into the primary living zone for rapid localized relief, or guide it forward and aft to eliminate frustrating hot or cold spots. The user-friendly layout features manual operational knobs positioned on the horizontal surface for quick tactile access in tall-ceiling motorhomes, paired with convenient pop-out grilles that allow for swift, tool-free access to the washable filters.

Please note that this non-ducted assembly is engineered as the indoor-facing component only and does not include the upper rooftop condensing unit, wall thermostat, or physical mounting hardware. While it is fully heat-pump-ready and compatible with specialized rooftop modules—including the Coleman-Mach 480 Series, Mach 15 HP2, and Mach Power Saver Heat Pump lines—it will not add heat functionality to a standard cooling-only rooftop system. This model serves as an exact factory-authorized replacement or modern upgrade that directly supersedes legacy part numbers 9630-715, 9330E715, 9530F715, and 9530G715.
