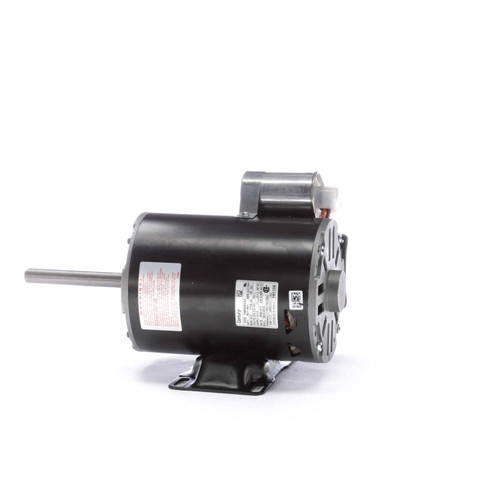

FR1106 Century Condenser Fan Motor Single Phase - Resilient Base 1 hp, 1075 RPM, 208-230/460V Century # FR1106

FR1106 Century Condenser Fan Motor Single Phase - Resilient Base 1 hp, 1075 RPM, 208-230/460V Century # FR1106

This Century condenser fan motor is a reliable single-phase unit designed for HVAC applications. It serves as a direct replacement for models such as Kramer Trenton DD661, DD791, and Dayton 48Z042, ensuring compatibility and performance in condenser fan assemblies.

Key Specifications

• Horsepower: 1 hp
• RPM: 1075
• Voltage: 208-230/460V
• Amperage: 9.0/4.5 amps
• Shaft Dimensions: 5/8" x 3.5" with flat & keyway
• Bearings: Ball Bearings
• Enclosure: Resilient Base

Product Features & Fitment

The motor features a permanent split capacitor design with the capacitor included for ease of installation. It is rated for operation in ambient temperatures up to 60°C and has a motor case length of 8 inches. The resilient base mounting ensures stable and secure installation in condenser fan applications.

Warranty

1 Year Manufacturer Warranty
