CW25V2E2 Nidec 25 hp 1800 RPM 284T Frame (Rigid Base) 230/460V TEFC 3-Phase Cooling Tower Motor

CW25V2E2 Nidec 25 hp 1800 RPM 284T Frame (Rigid Base) 230/460V TEFC 3-Phase Cooling Tower Motor

SKU:
CW25V2E2
Weight:
380.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $3,621.00
Now: $3,232.60
Adding to cart… The item has been added
  • 25 hp 1800 RPM, 58.0/29.2 amps 230/460 Volts 60 Hz Three Phase Motor

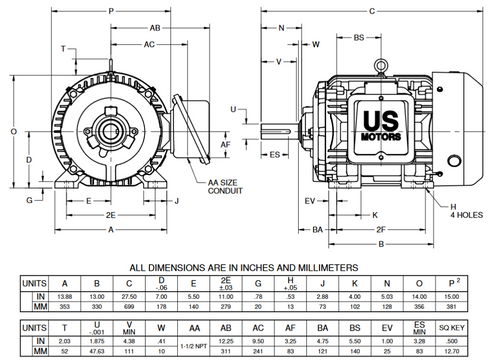

  • NEMA 284T Cast Iron frame Keyed Shaft 1 7/8" Diameter x 4 5/8"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

For use in cooling tower and evaporation cooler applications. Corrosion resistant, Inverter Duty (10:1 speed range). Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. GM57

!
