D010 Marathon 1 hp (1 speed) 115/208-230V 3600 RPM ODP 56 Frame Cap Start/Run Pressure Washer Motor

D010 Marathon 1 hp 115/208-230V 3600 RPM ODP Pressure Washer Motor

This Marathon 1 horsepower motor is designed for pressure washer units, specifically compatible with air compressors. It features a single-speed operation and is suitable for replacing motors requiring a capacitor start/run design with an open drip proof enclosure.

Key Specifications

• Horsepower: 1 hp
• RPM: 3600
• Voltage: 115/208-230 V, 60 Hz
• Amperage: 10.6/5.5-5.3 A
• Enclosure: Open Drip Proof (ODP)

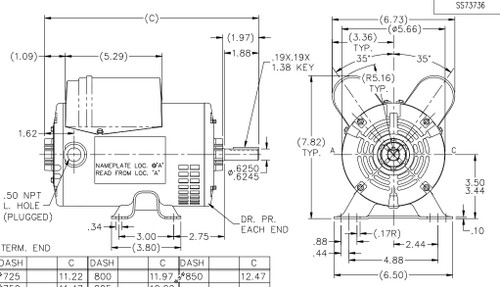

• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: 1 7/8" length x 5/8" diameter
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor includes capacitor start and capacitor run components for reliable performance and a service factor of 1.15. It is mounted on a rigid base and features manual thermal protection. The shaft orientation may be horizontal, accommodating typical pressure washer air compressor setups.

Warranty

1 Year Manufacturer Warranty
