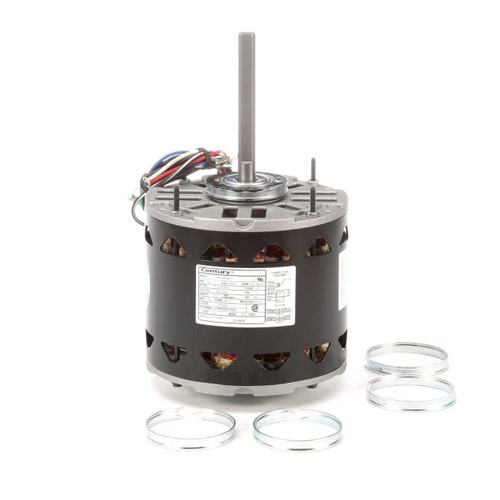

D1056S Century 1/2 hp 1075 RPM 3-Speed 48 Frame 208-230V Direct Drive Furnace Motor

D1056S Century 1/2 hp 1075 RPM 3-Speed 48 Frame 208-230V Direct Drive Furnace Motor

The D1056S is a reliable 1/2 horsepower direct drive furnace motor designed for residential HVAC applications. It replaces Century model F48H06A01 and is suitable for most belly band mounting setups.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1075
• Voltage: 208-230V
• Amperage: 3.6 amps
• Enclosure: Permanent Split Capacitor (PSC)
• Frame / Diameter: 48 Frame / 5.6" Diameter
• Shaft Dimensions: 1/2" diameter x 4.5" length
• Rotation: Reversible
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor includes a 7.5 MFD 370V capacitor and features automatic overload protection for continuous duty operation. It is equipped with 26" leads and 2 1/4" resilient rings, allowing for easy rotation changes. The motor is compatible with belly band or stud mount installations and fits most belly band applications using a strap or clamp around the motor body. Compatible belly band brackets include the Torsion Flex Bracket (3-Prong #2MEY7, 4-Prong #FM554) and the Welded 3-Ring Bracket (#2MEV4). The motor is rated for Class B insulation and designed for operation in ambient temperatures up to 40°C.

Warranty

1 Year Manufacturer Warranty
