D12P3AH Nidec 1/2 hp 1200 RPM 56H Frame (Rigid Base) 208-230/460V ODP 3-Phase Electric Motor
D12P3AH Nidec 1/2 hp 1200 RPM 56H Frame (Rigid Base) 208-230/460V ODP 3-Phase Electric Motor
D12P3AH Nidec 1/2 hp 1200 RPM 56H Frame (Rigid Base) 208-230/460V ODP 3-Phase Electric Motor
D12P3AH Nidec 1/2 hp 1200 RPM 56H Frame (Rigid Base) 208-230/460V ODP 3-Phase Electric Motor

Nidec

D12P3AH Nidec 1/2 hp 1200 RPM 56H Frame (Rigid Base) 208-230/460V ODP 3-Phase Electric Motor

(No reviews) Write a Review
$478.40
$427.57
SKU D12P3AH
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 1/2 HP
RPM 1200
Phase Three Phase
Frame 56H
Enclosure ODP
Hertz 60 Hz
Amperage 2.4/0.7 Amps
Bearings Ball Bearings
Service Factor 1.25
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1/2 hp 1200 RPM, 2.4/0.7 amps  208-230/460 Volts 60 Hz Three Phase Motor
  • NEMA 56H Rolled Steel Frame, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.25, Overload protection = None
  • Rigid Base Mount,  Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

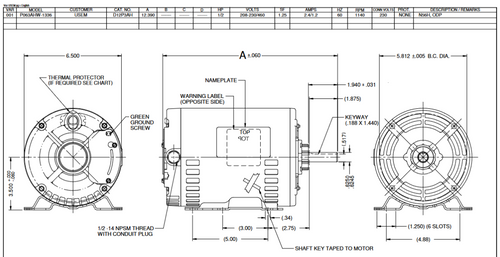

General purpose motor designed for use with pumps, fans, and compressors where contaminants are minimal. Wiring diagram on motor name plate. ODP = Open Drip Proof. P063AHW1336015B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 1/2 HP
RPM 1200
Phase Three Phase
Frame 56H
Enclosure ODP
Hertz 60 Hz
Amperage 2.4/0.7 Amps
Bearings Ball Bearings
Service Factor 1.25
Insulation Class Class F
Mounting Rigid Base
!
