D13B3P9 Nidec 1/3 hp 1200 RPM 56 Frame (Resilient Base) 1-Speed 115/230V ODP Blower Motor

SKU:
D13B3P9
Weight:
25.00 LBS
Shipping:
Calculated at Checkout
$347.20
  • 1/3 hp 1200 RPM, 7.5/3.8 amps 115/230 Volts 60 Hz Split Phase Motor
  • NEMA 56 Frame, Rolled Steel with Cast Aluminum End Bells, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.35 Overload protection = None
  • Resilient Mount, Ball Bearings, Class B Insulation, Reversible
  • 1 Year Manufacture Warranty

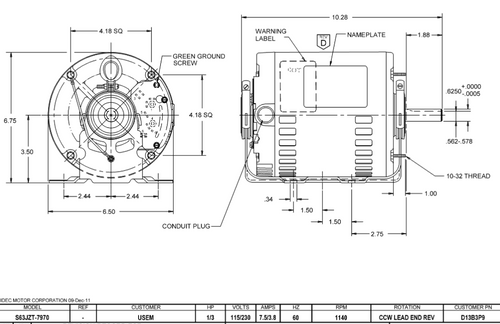

For commercial and industrial ventilation systems. Wiring diagram on motor name plate. ODP = Open Drip-Proof. S063JZT7970022B
