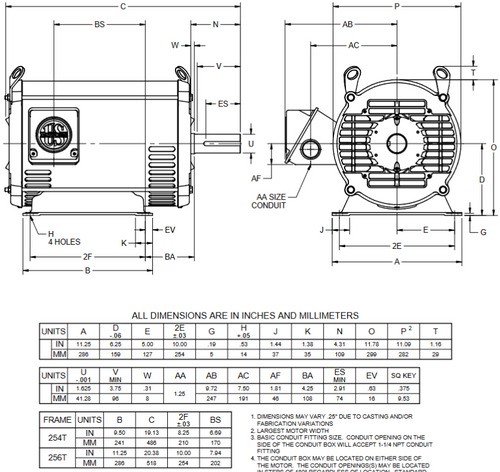

25 hp 3600 RPM, 57.0/28.5 amps 230/460 Volts 60 Hz Three Phase Motor
NEMA 256T Rolled Steel Frame with Cast Aluminum End Bells, Keyed Shaft 1 5/8" Diameter x 4"
Service Factor: 1.15 Overload protection = None
C-Face Mount, Ball Bearings, Class F Insulation, Reversible
1 Year Manufacture Warranty
Speed controllable motor for material handling, pumps, and fans, in normal environments. 5:1 speed range at constant torque, 20:1 at variable torque. NEMA design B. Brake provisions. Wiring diagram on motor name plate. ODP = Open Drip-Proof. HD40
D25V1B Nidec 25 hp 3600 RPM 256T (Rigid Base) 230/460V ODP Inverter-Duty 3-Phase Motor
- SKU:
- D25V1B
- Weight:
- 160.00 LBS
- Shipping:
- Calculated at Checkout
- ON SALE:
- LIMITED TIME DISCOUNT
Nidec
